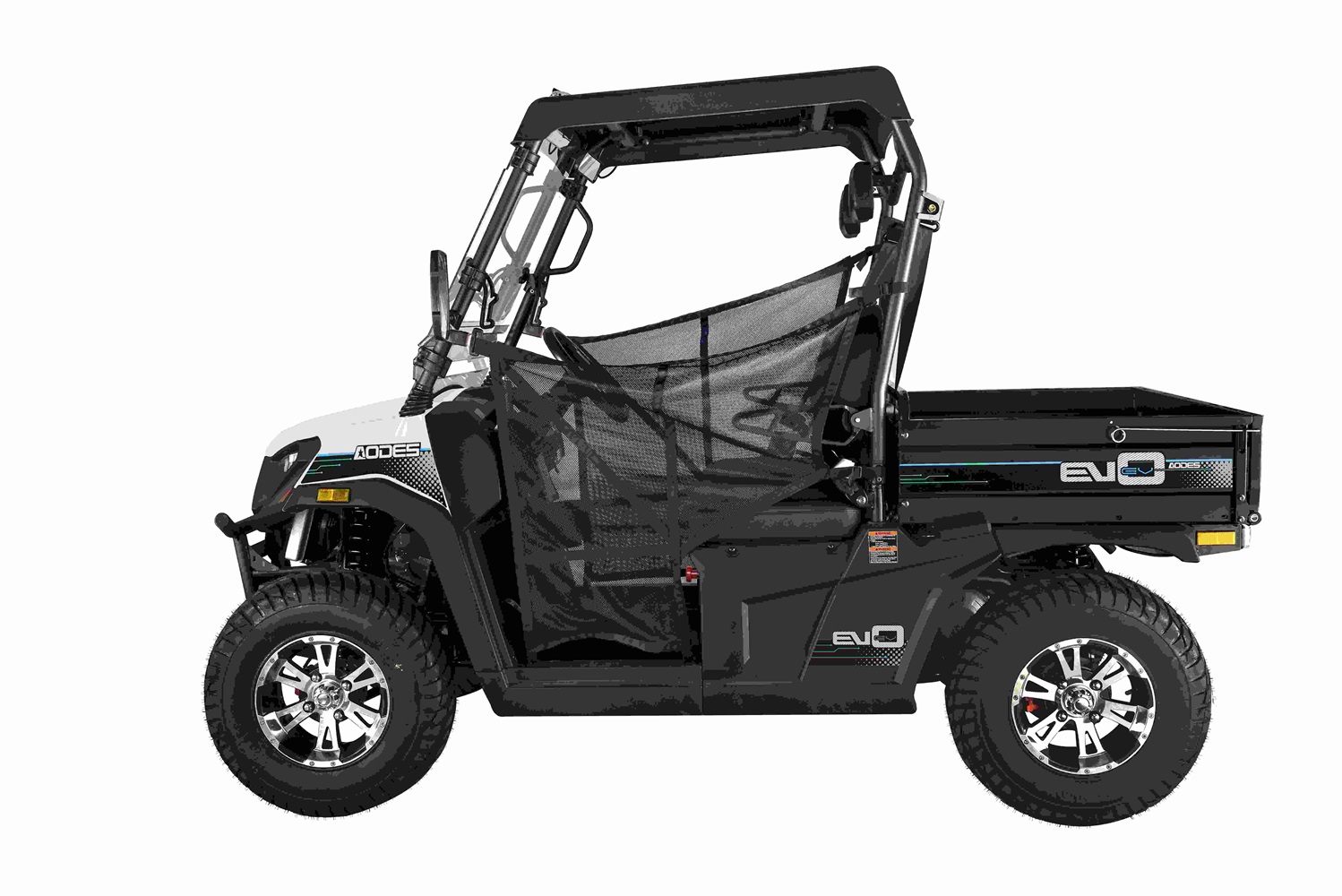

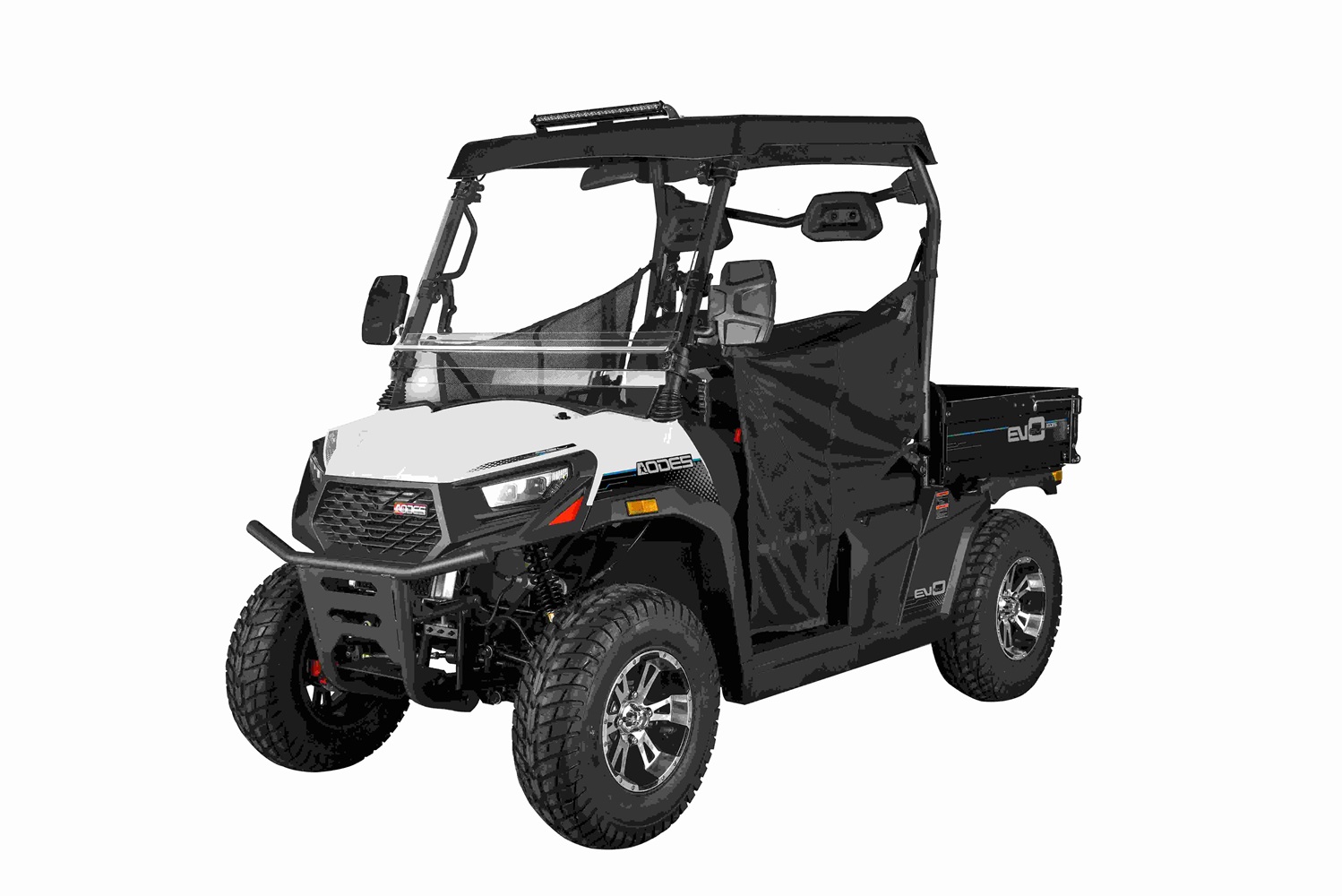

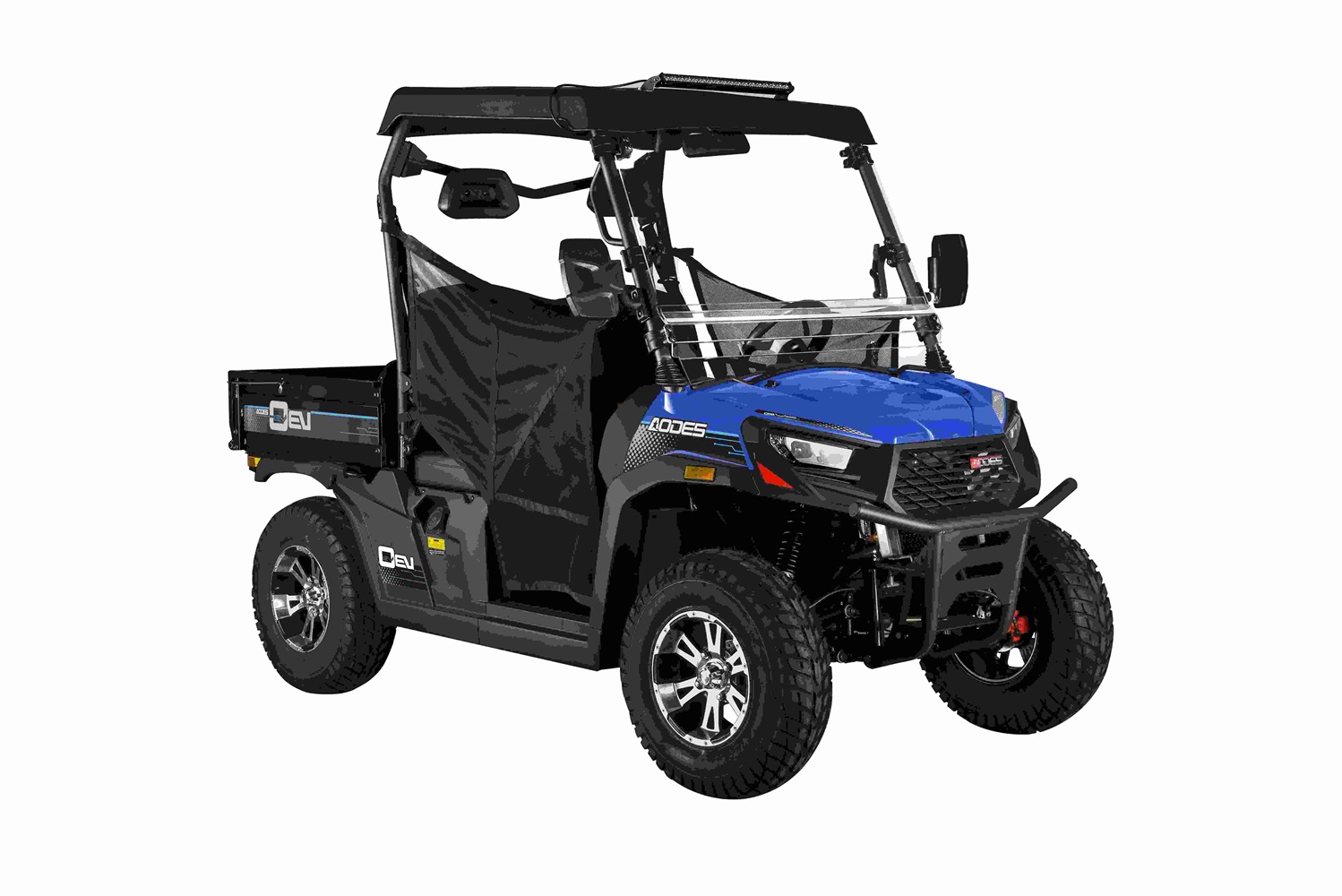

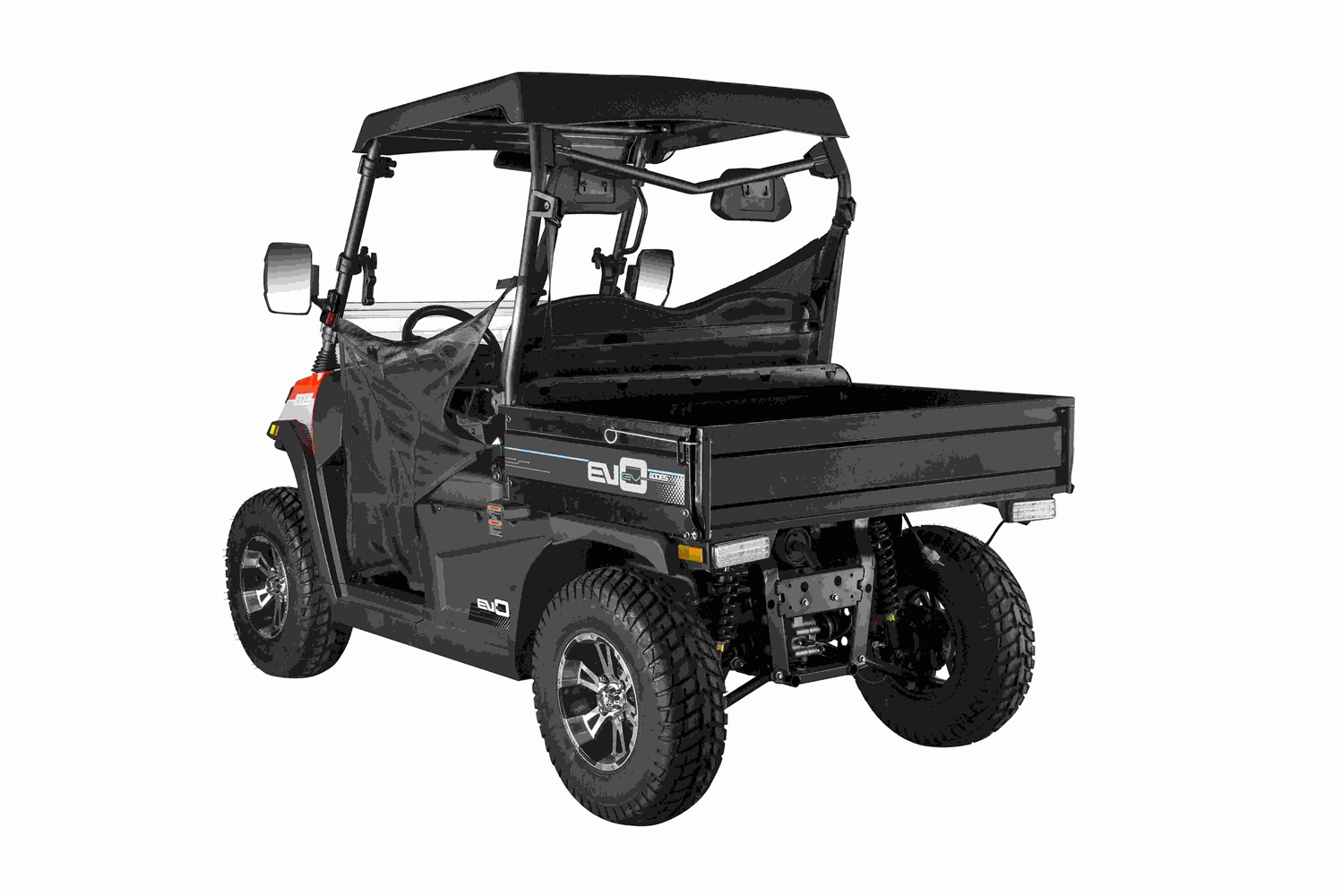

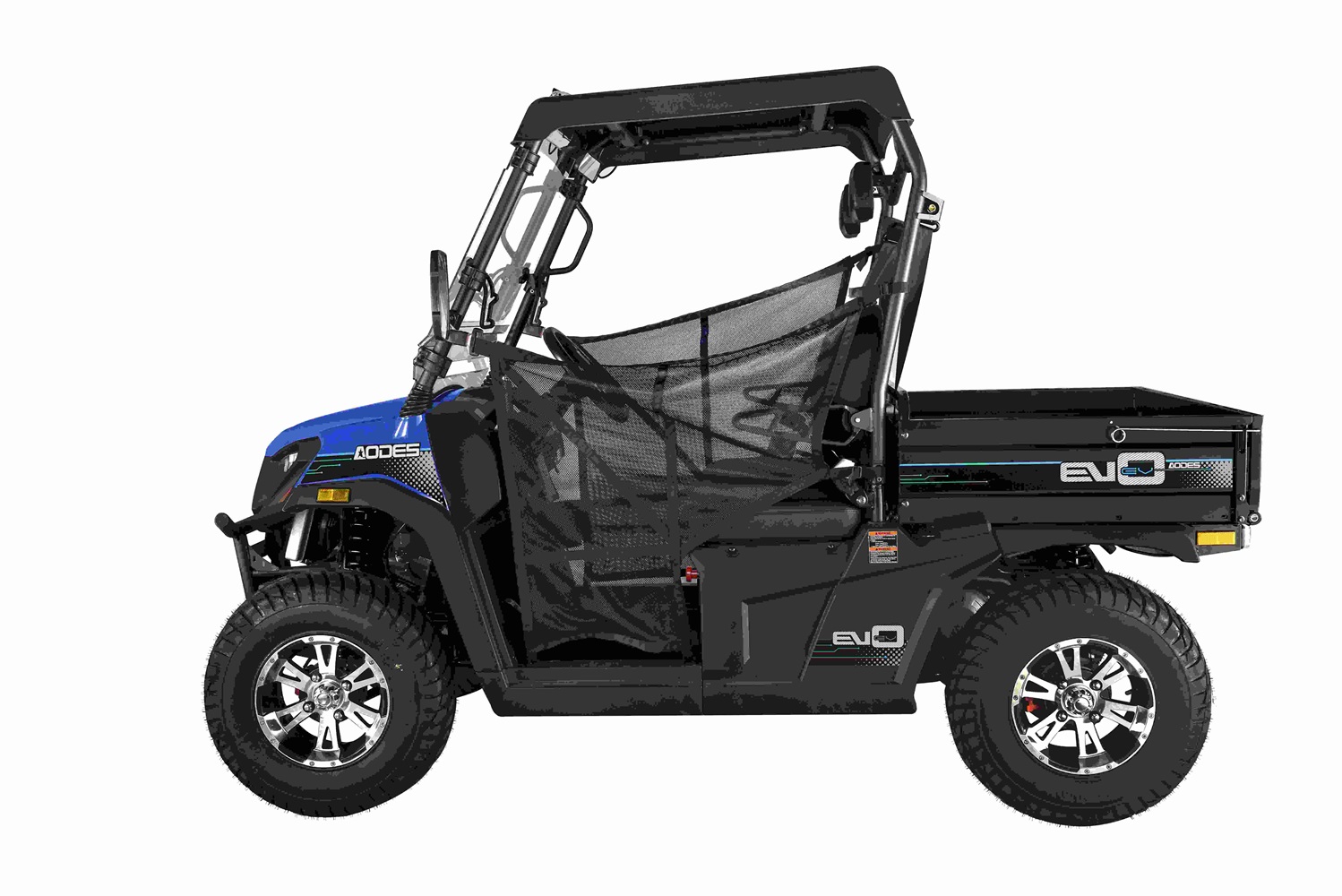

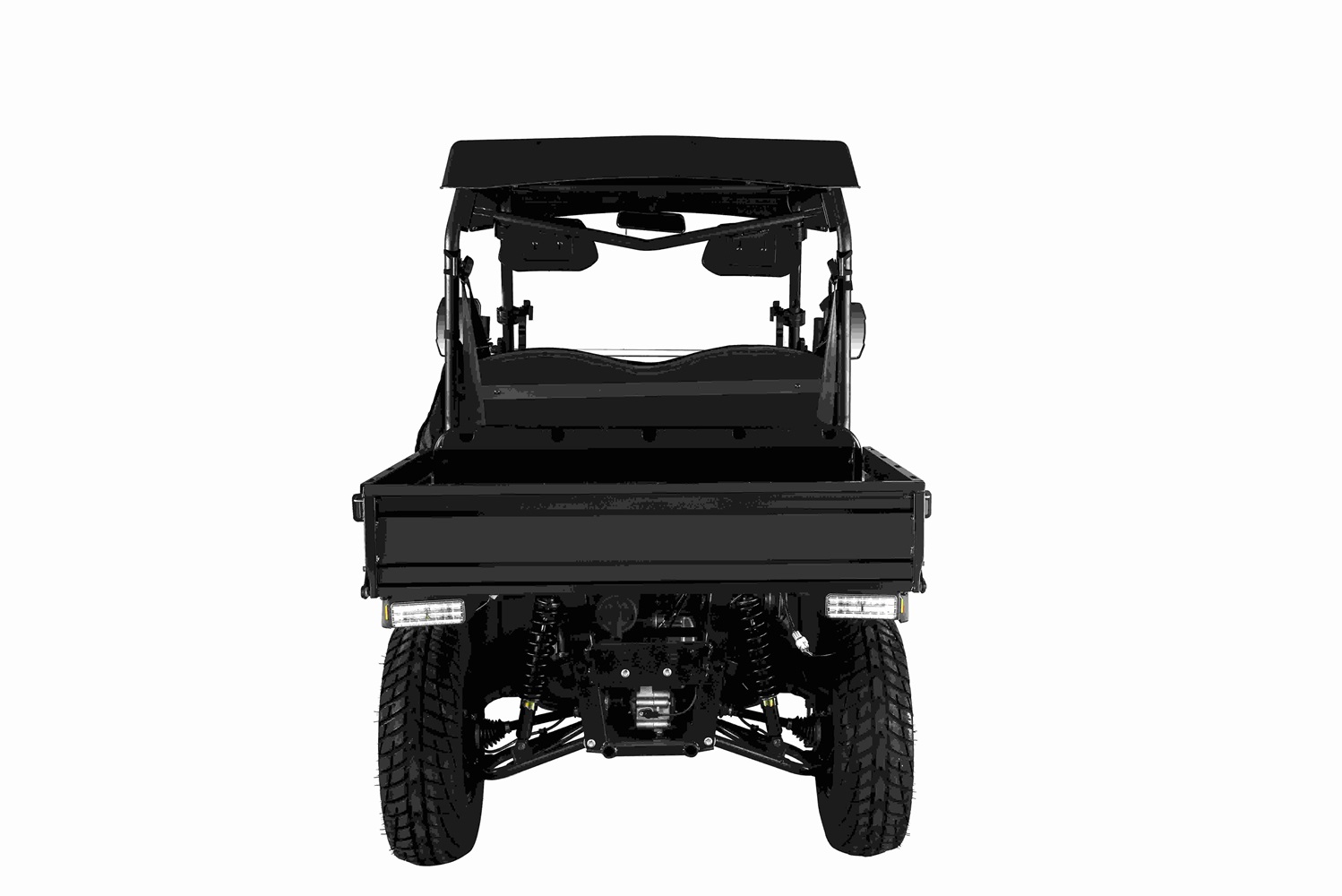

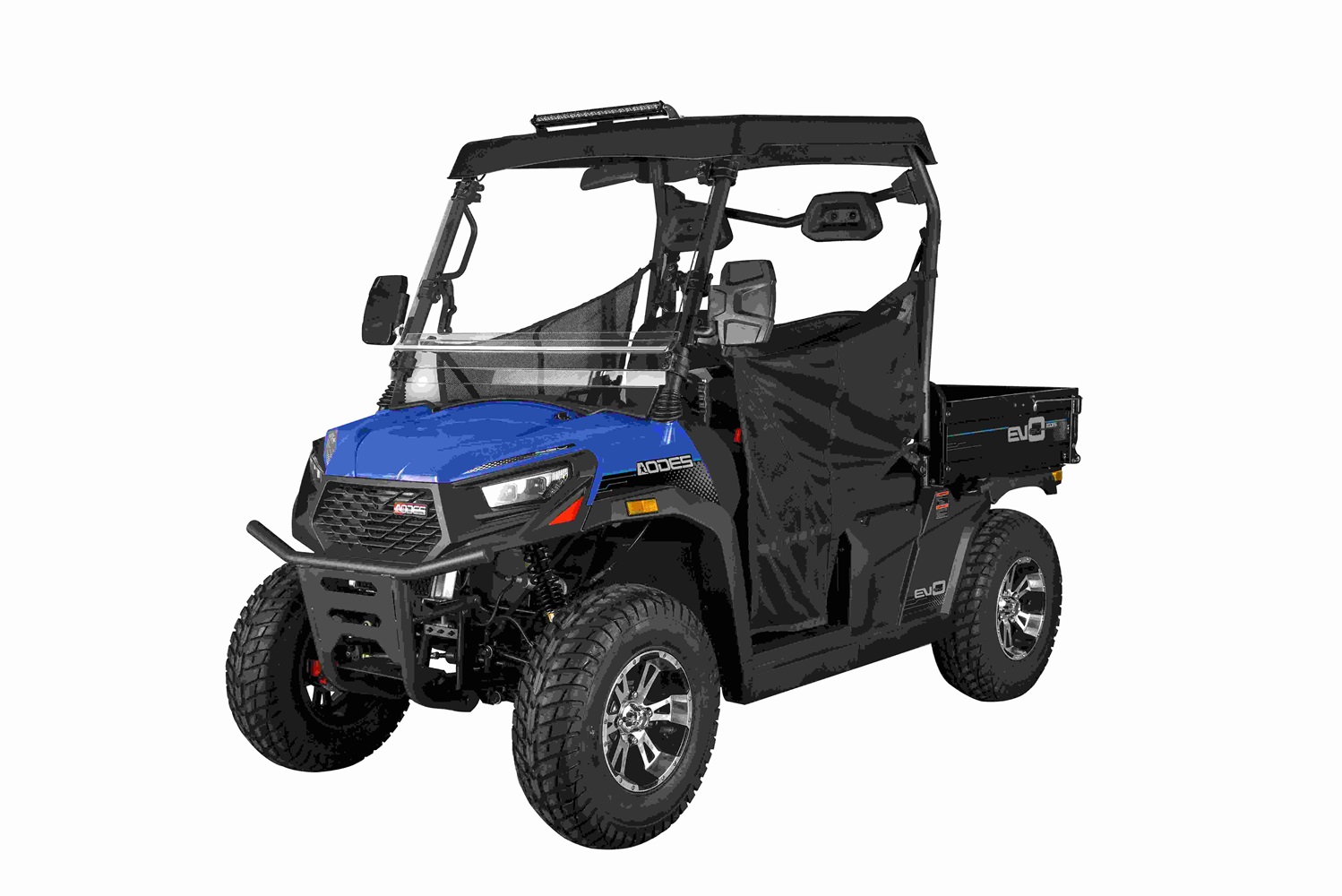

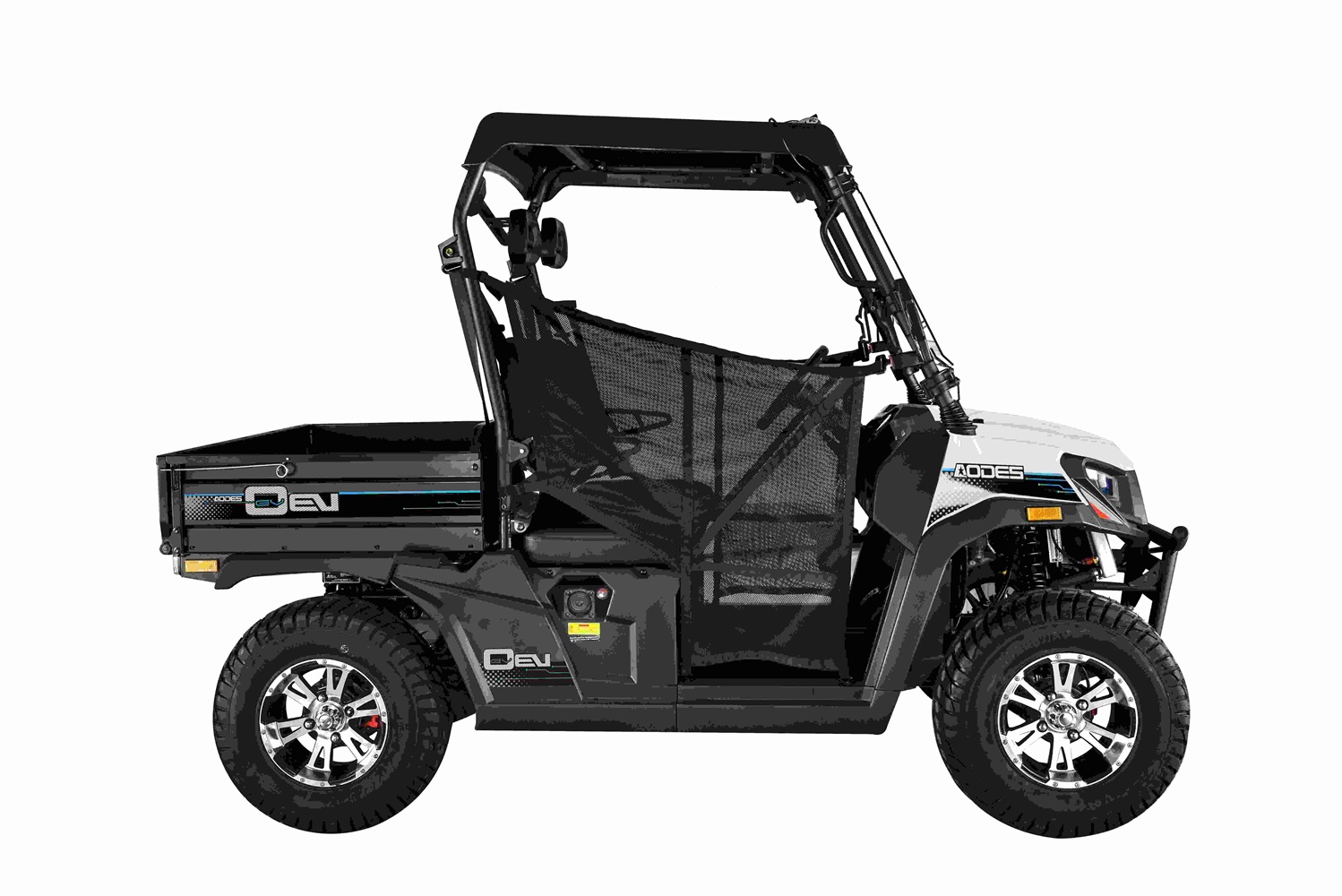

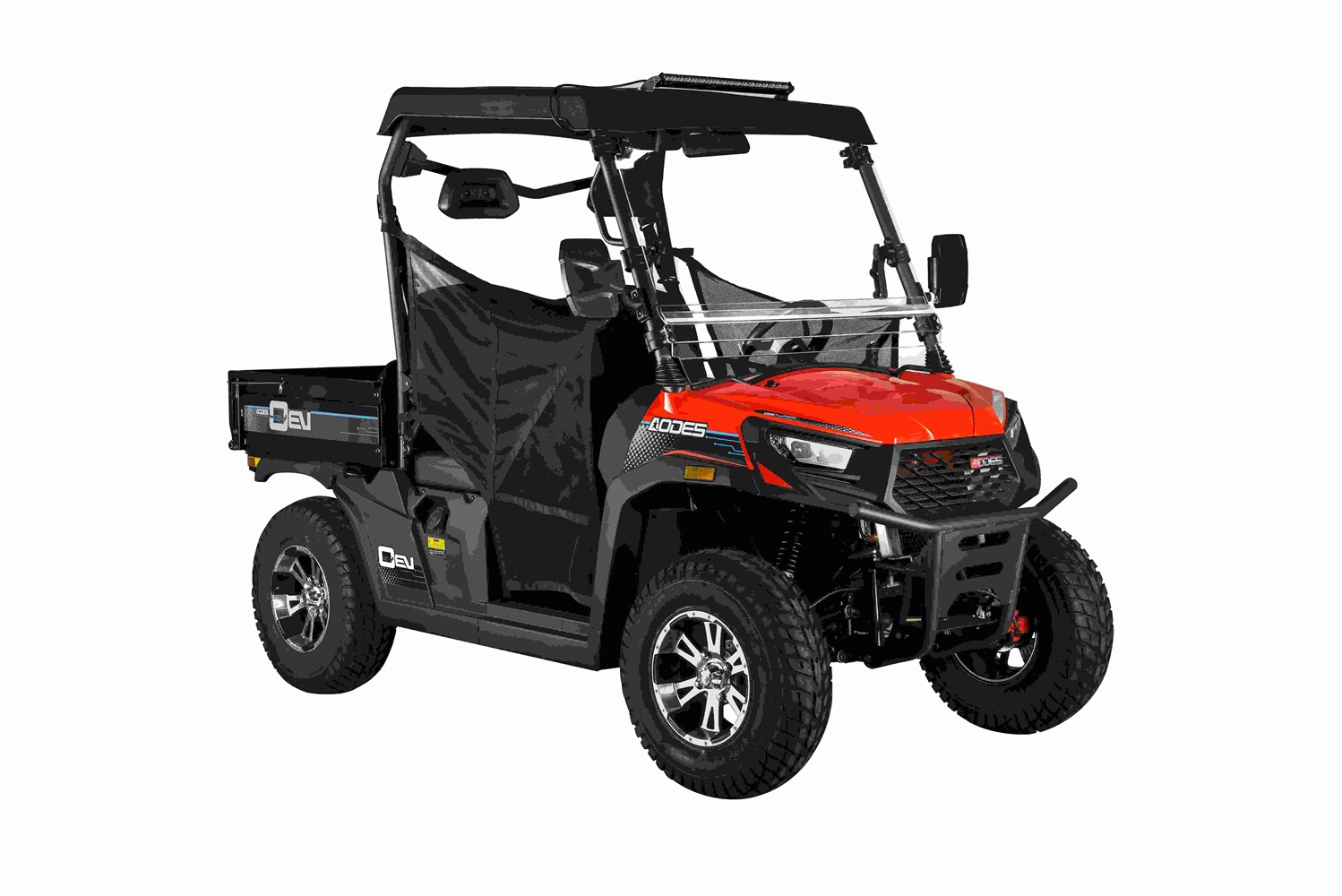

일렉트릭 트레일크로스 덤프베드

With a unique combination of shaft drive, dual A-arm suspension, customizable back seat, and UL-listed power battery, the TrailCross defines exceptional vehicle design and performance.

The configuration data is provided as a reference only, and the specifics of the offer may vary based on the dealer's actual proposal.

PICK YOUR COLOR

PC650L

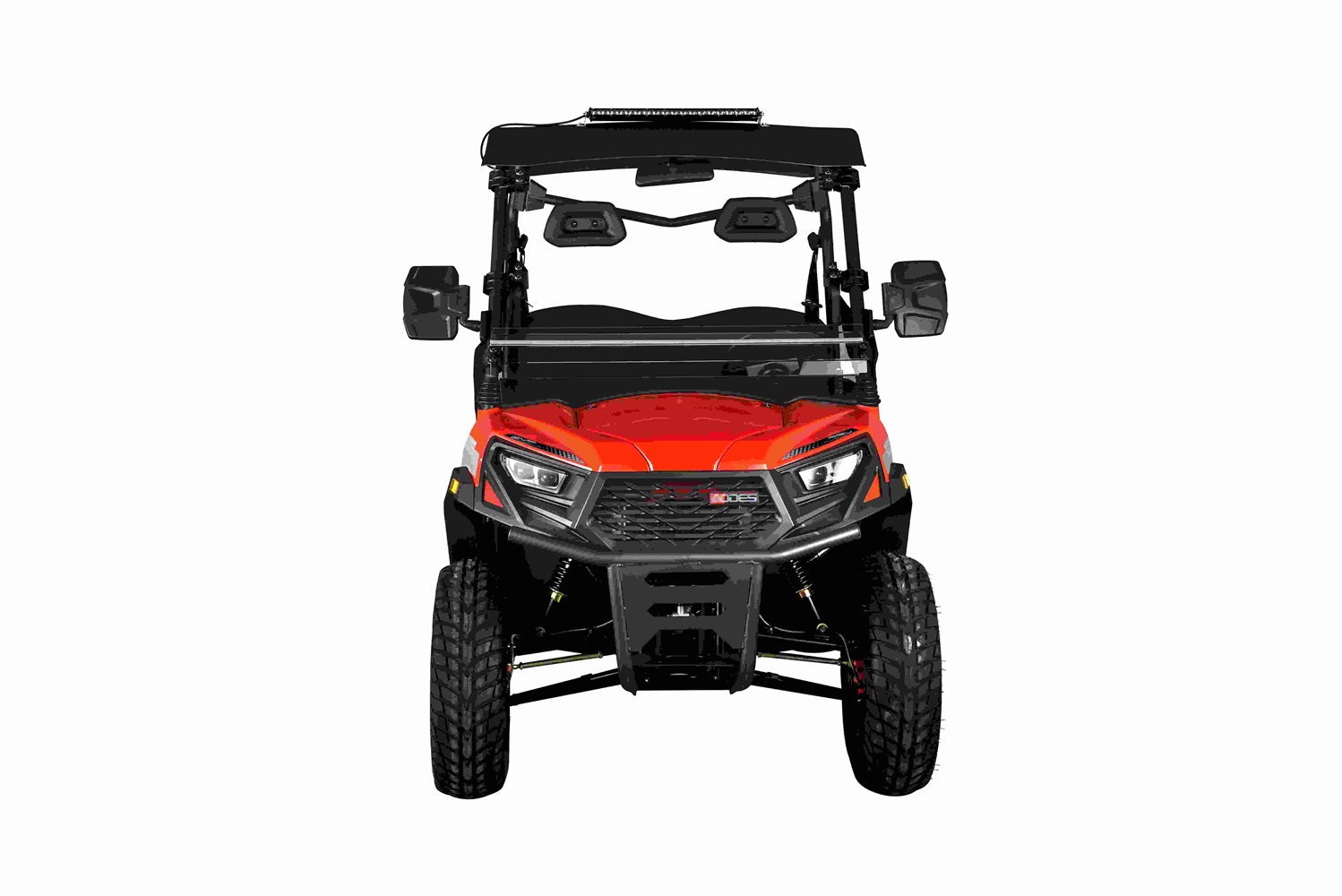

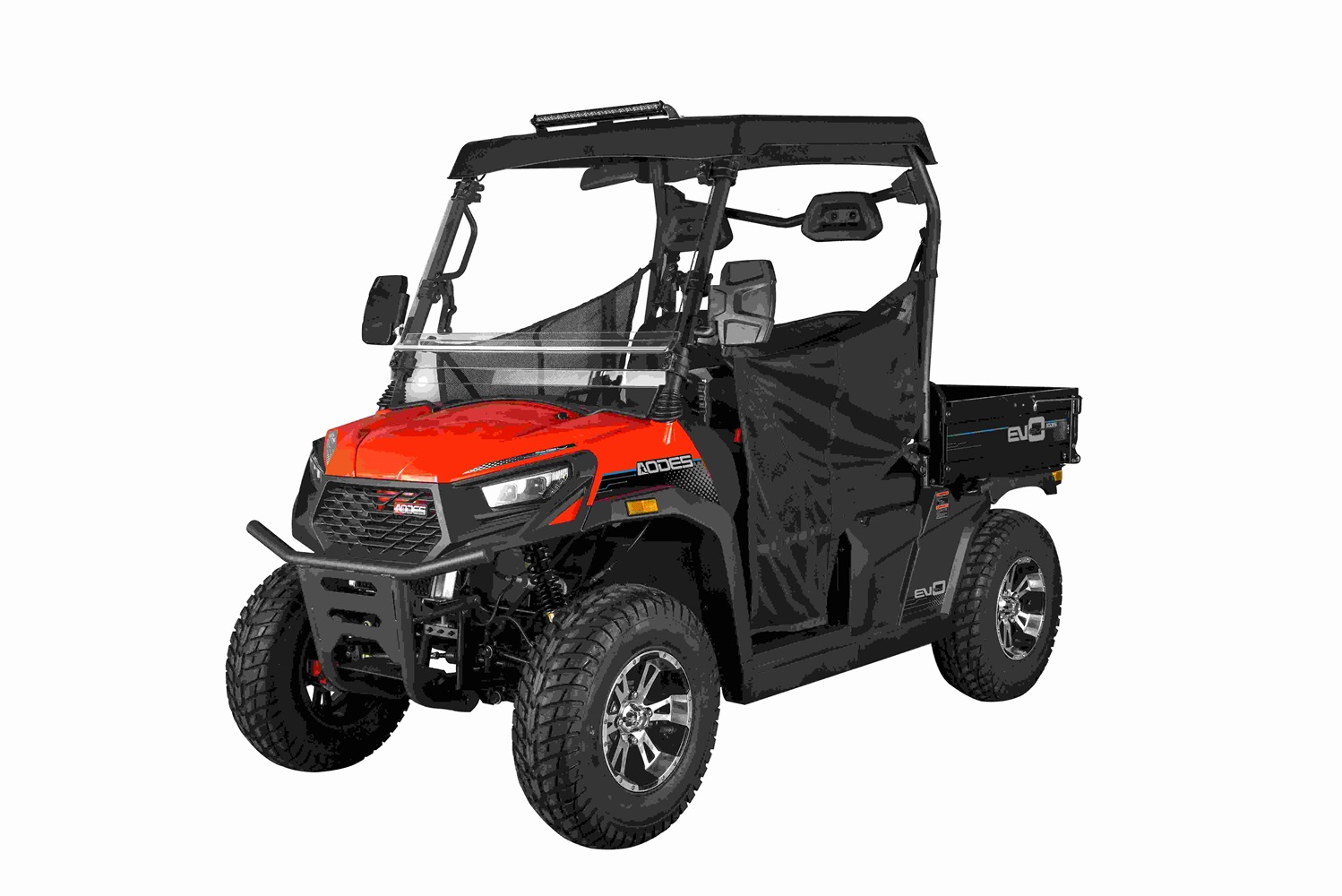

Red
PC650L

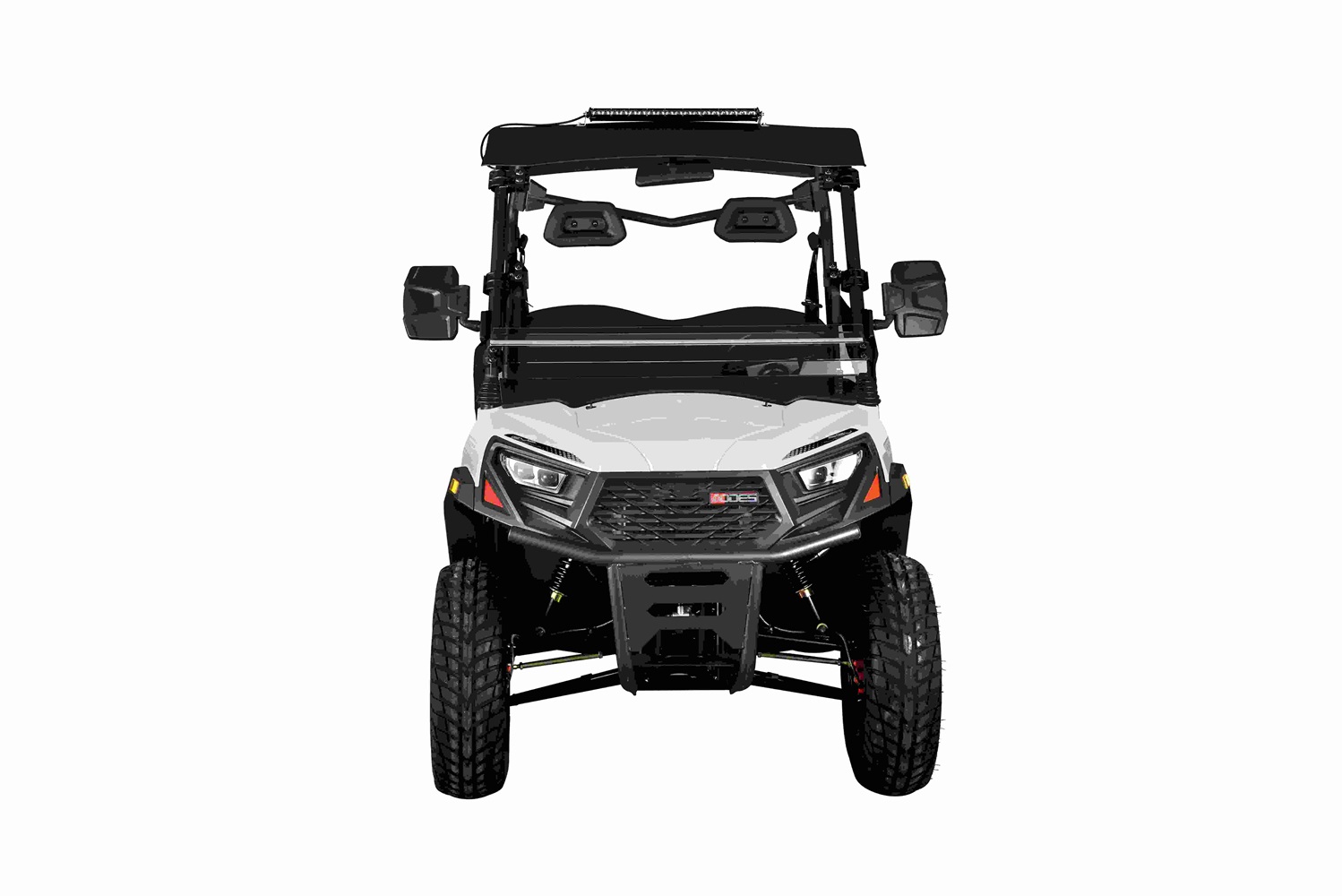

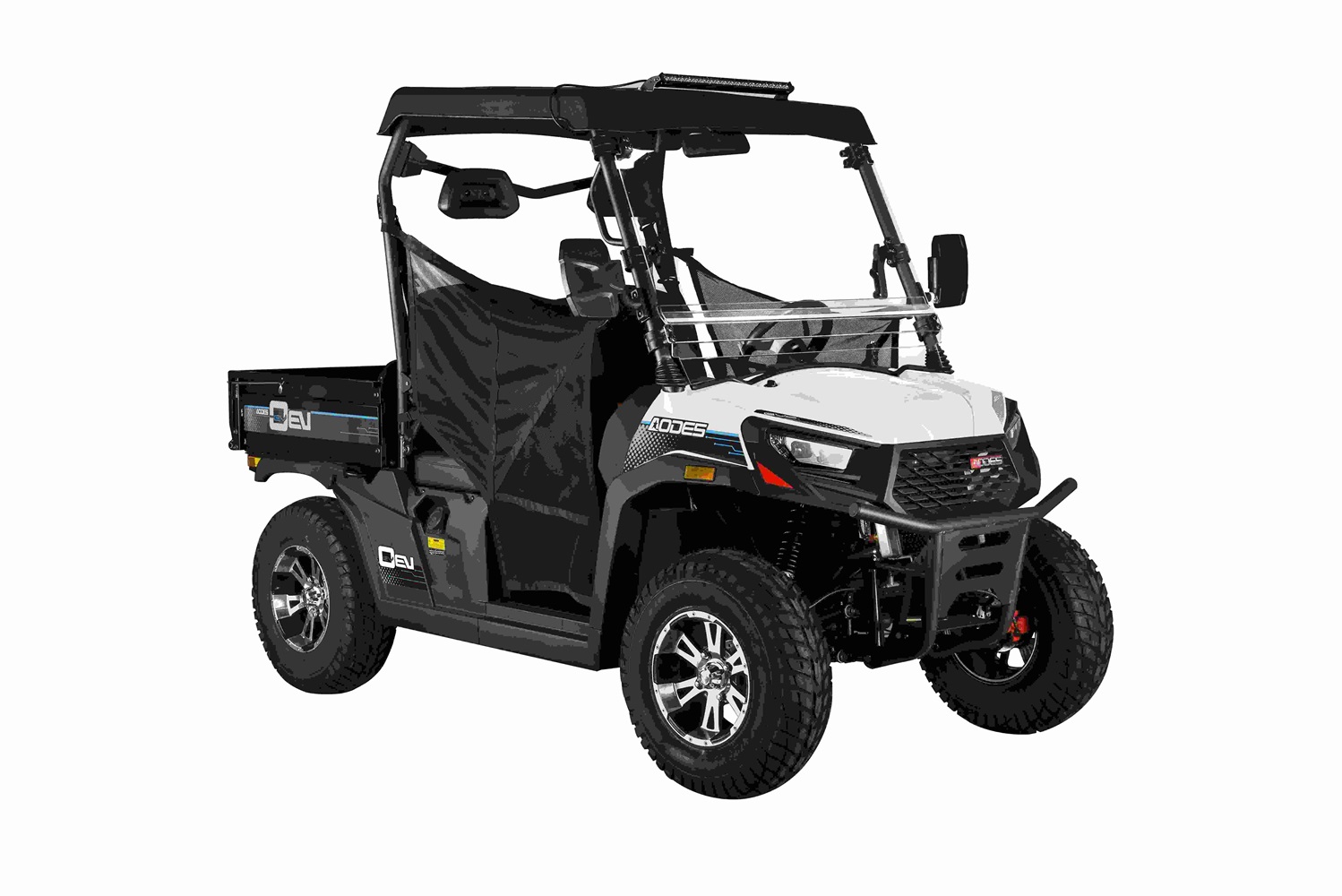

White
PC650L

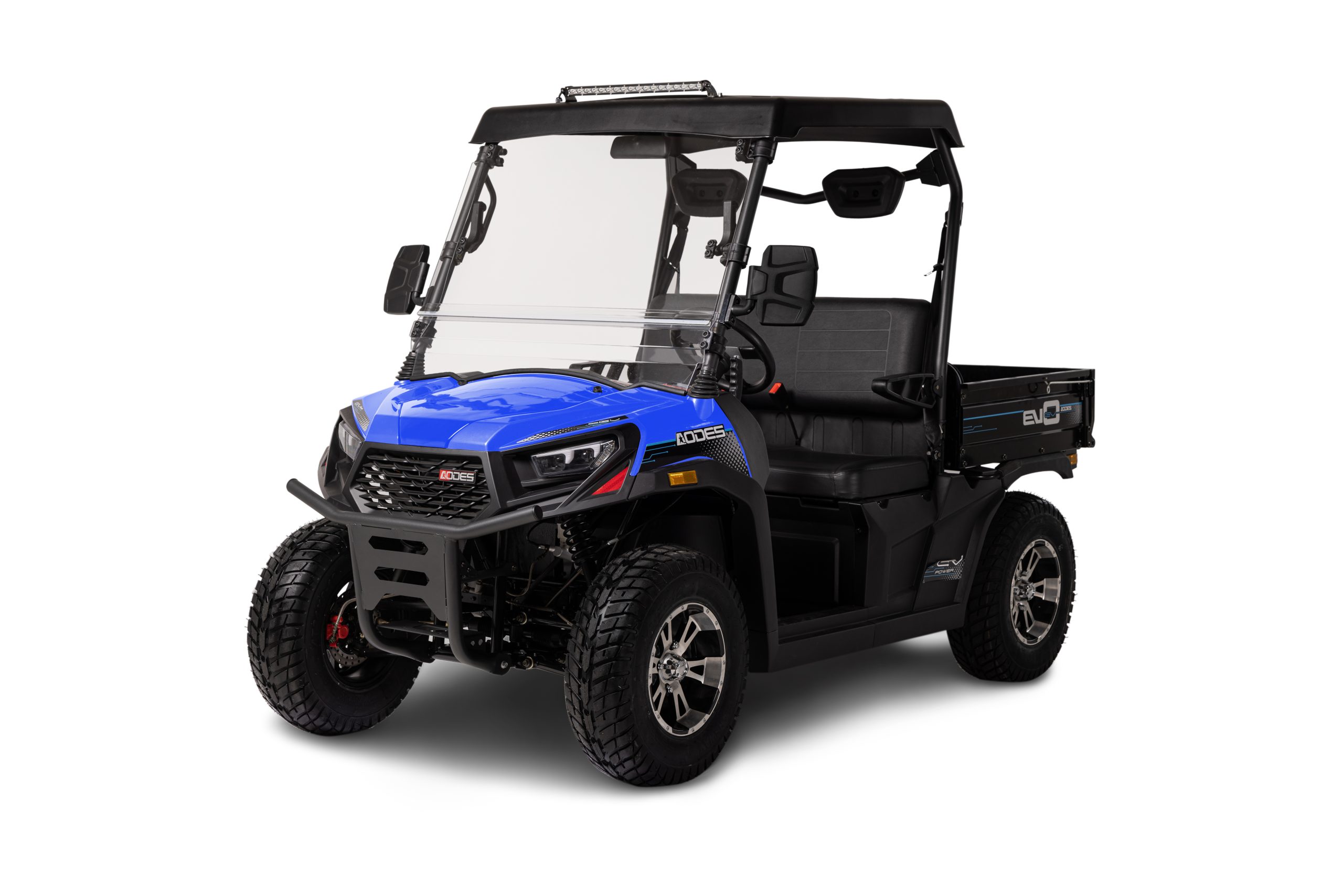

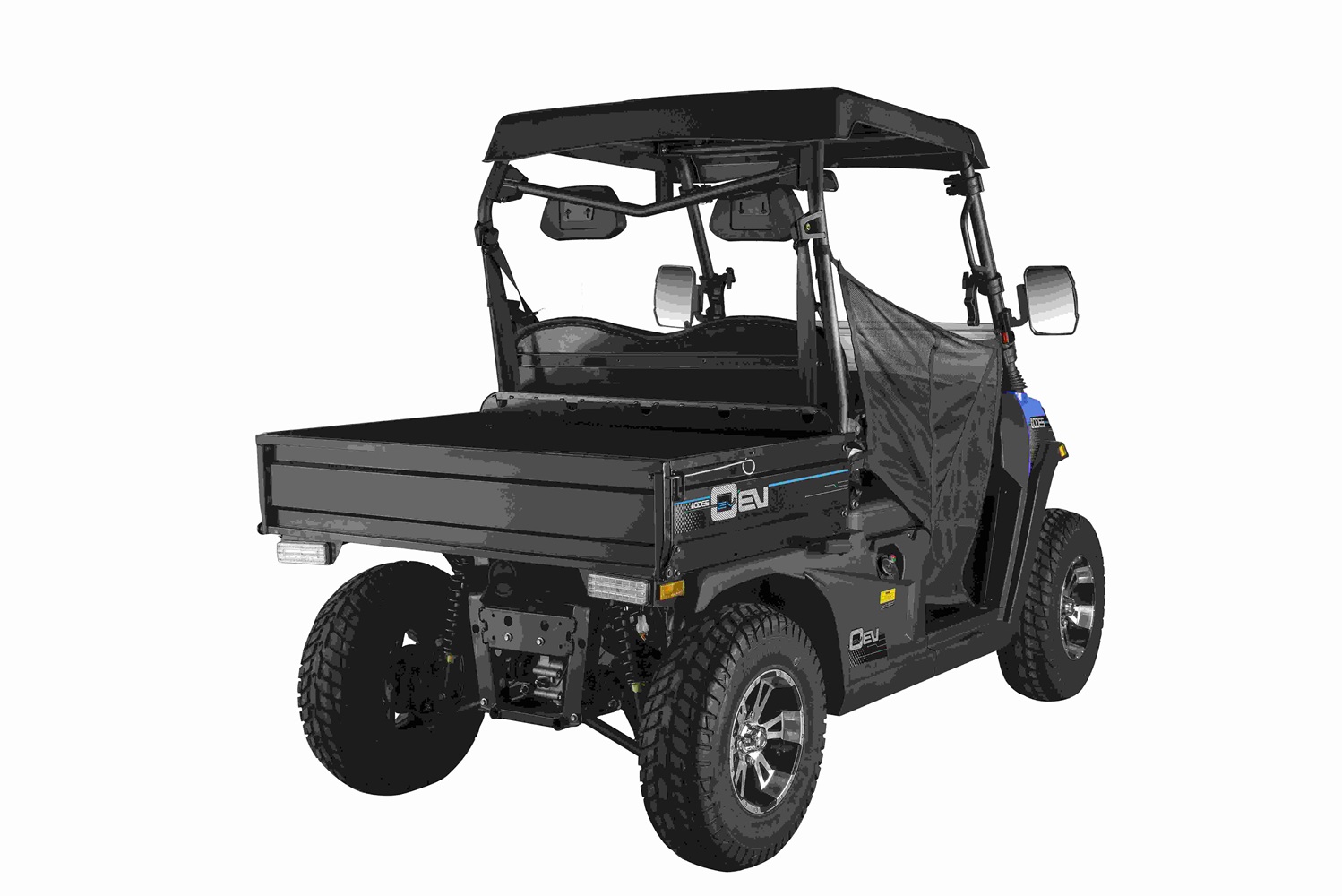

Blue
PC650L
True Timber
PC650L
Cyber grey

BASIC PARAMETER

LxWxH(mm)
Wheelbase(mm)
Minimum ground clearance (mm)
Max speed(km/h)
Bed dimensions (mm)
2645x1340x1825
1840
155
40
1185x775.5x224.5

BATTERY

Power
Motor
Output Rating
Batteries

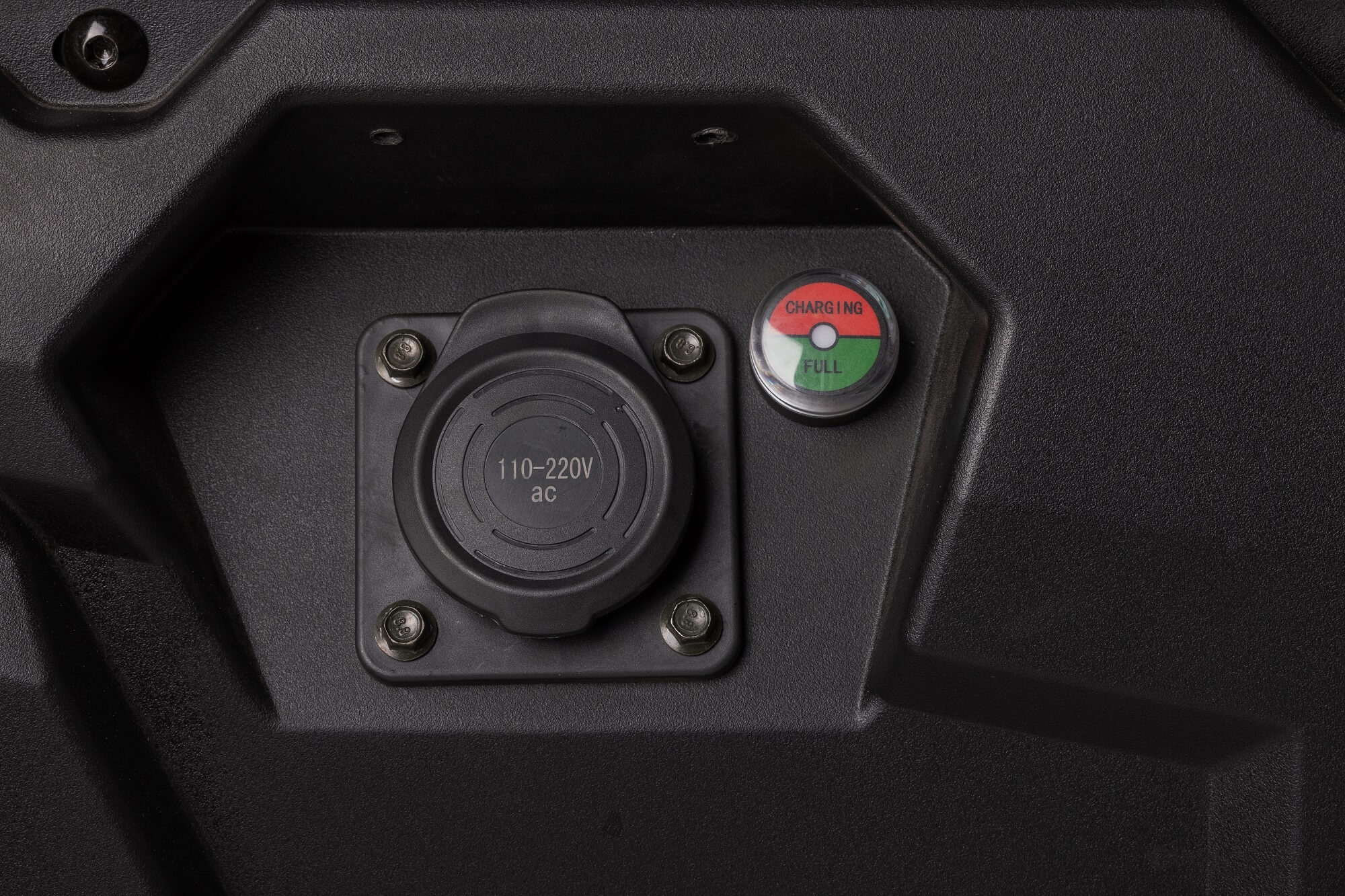

Battery Charger
48V150AH Lead-acid gel battery
48-Volt
6.7 HP(5.0 kw)
Four,12 Volt Lead Acid Deep Cycle
48V 25A,UL

WHEEL BRAKE&TRANSMISSINO

transmission way
Drive train
Front brake
Rear brake
Parking brake
Front tire specification
Rear tire specification
Aluminum alloy rim
Front Rim (steel)
Shaft drive
2WD
Disc brake
Disc brake
Hand brake
24x8-R12
24x8-R12
·
O

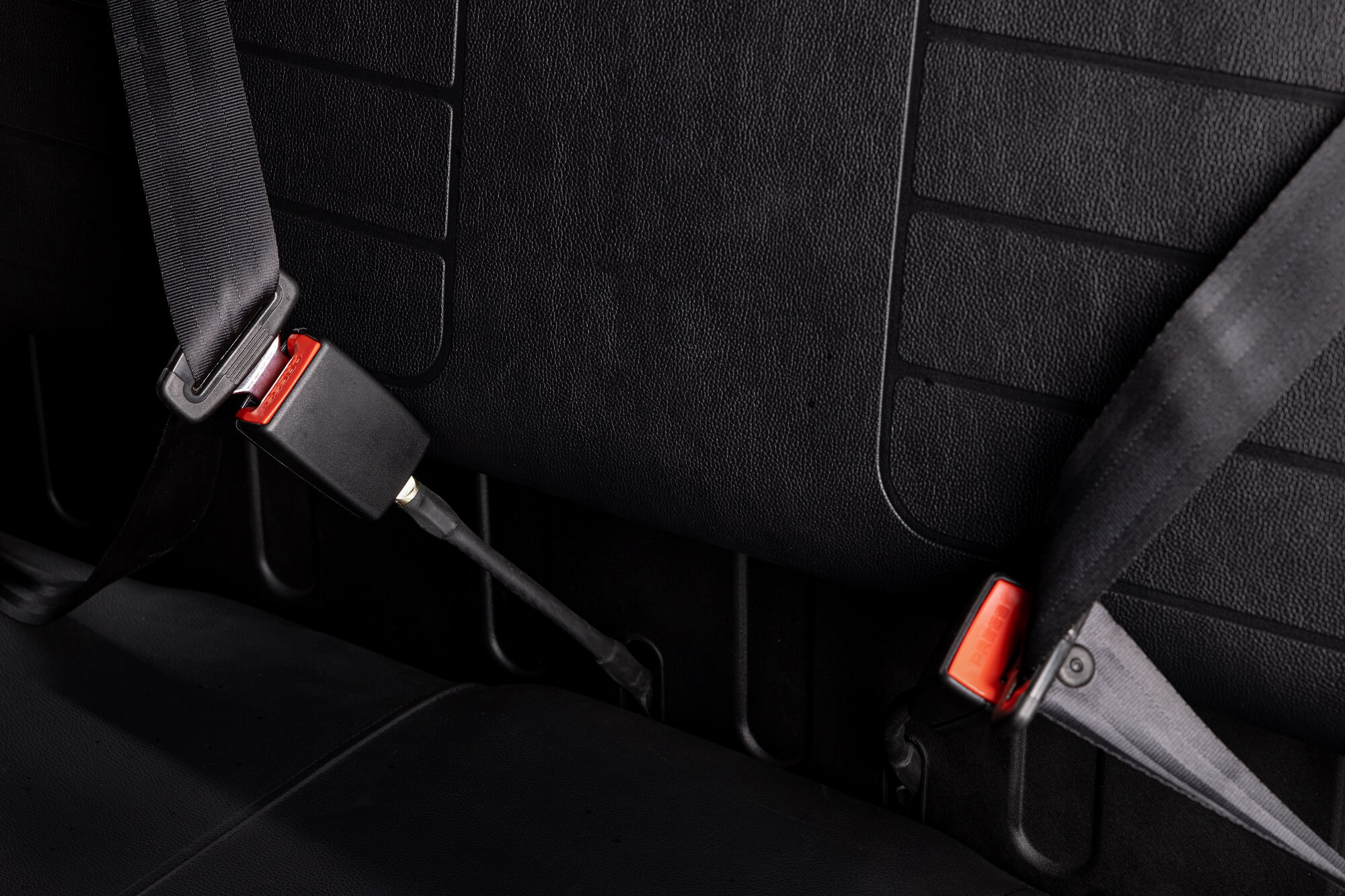

SEAT EQUIPMENT

Seets number
Collapsible
2 seats
-

SUSPENSION

Front
Rear
Shocks
Independent Dual A-Arm
Independent Dual A-Arm
Adjustable Coilover Shocks

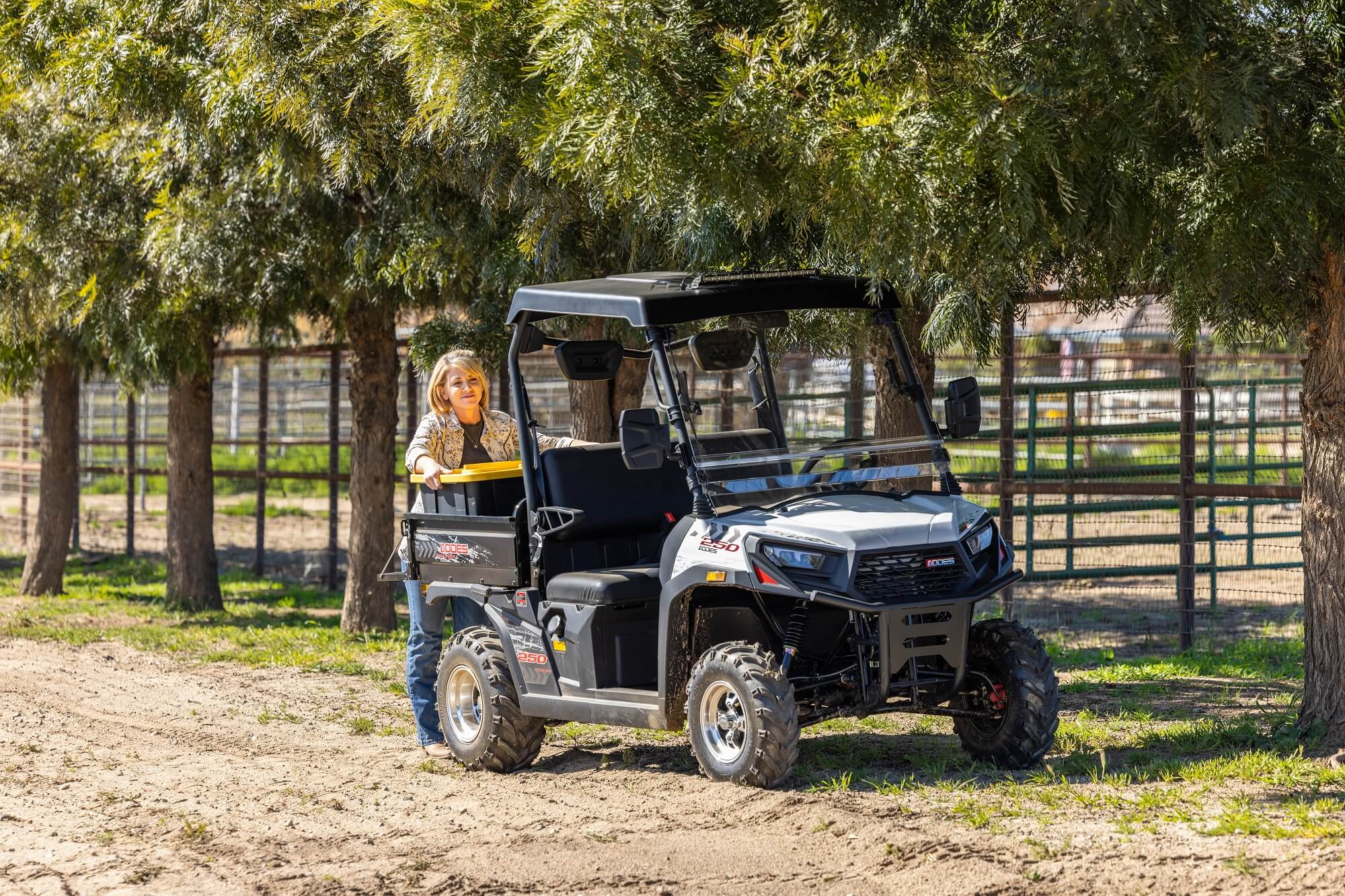

E-TRAILCROSS

Easily meet your outdoor activity needs

The E-TrailCross is a veritable little beast that roams the golf courses. With Integrated rear axle motor it proves to be more tough-powerful than others with the same motor watts level. Shaft drive, Front & Rear double A arm suspension and customizable back seat area these all features make this vehicle stand out among all others. Also the original power battery is UL listed.

FEATURES

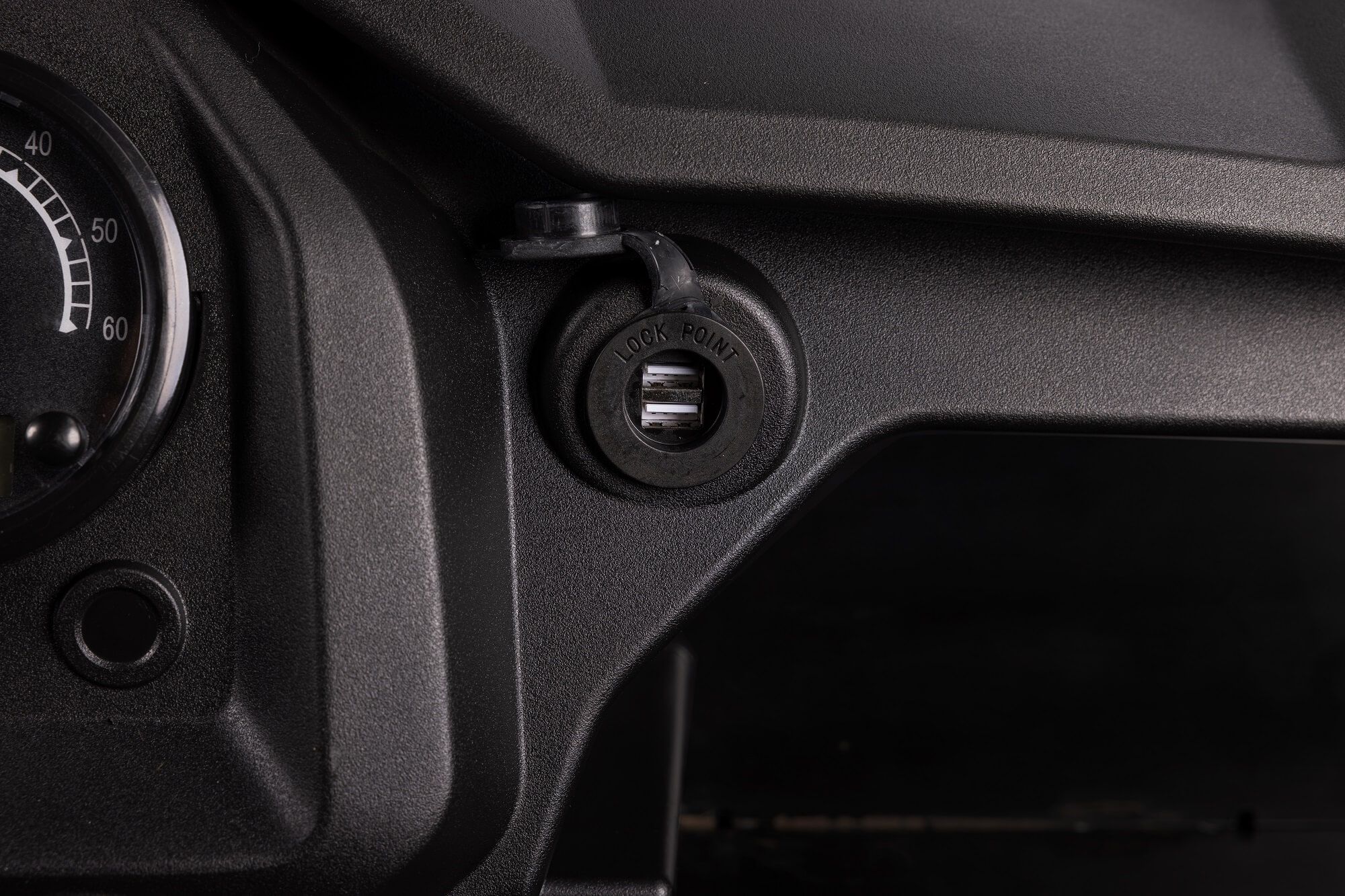

USER-FRIENDLY POWER SOCKET AND GEARSHIFTING

The 12V auxiliary power socket and 5V USB power socket make it more convenient to use, while the illuminated knob-style gear shifting operation is more conspicuous and user-friendly.

9" COOL AND LARGE LCD SCREEN

10.1-inch multimedia with diverse functions, including audio, mobile phone charging, USB playback, Bluetooth and mileage, speed ,reverse image display.

HIGHER GROUND CLEARANCE

190mm ground clearance, great off-road option sometimes to tackle rugged terrain.

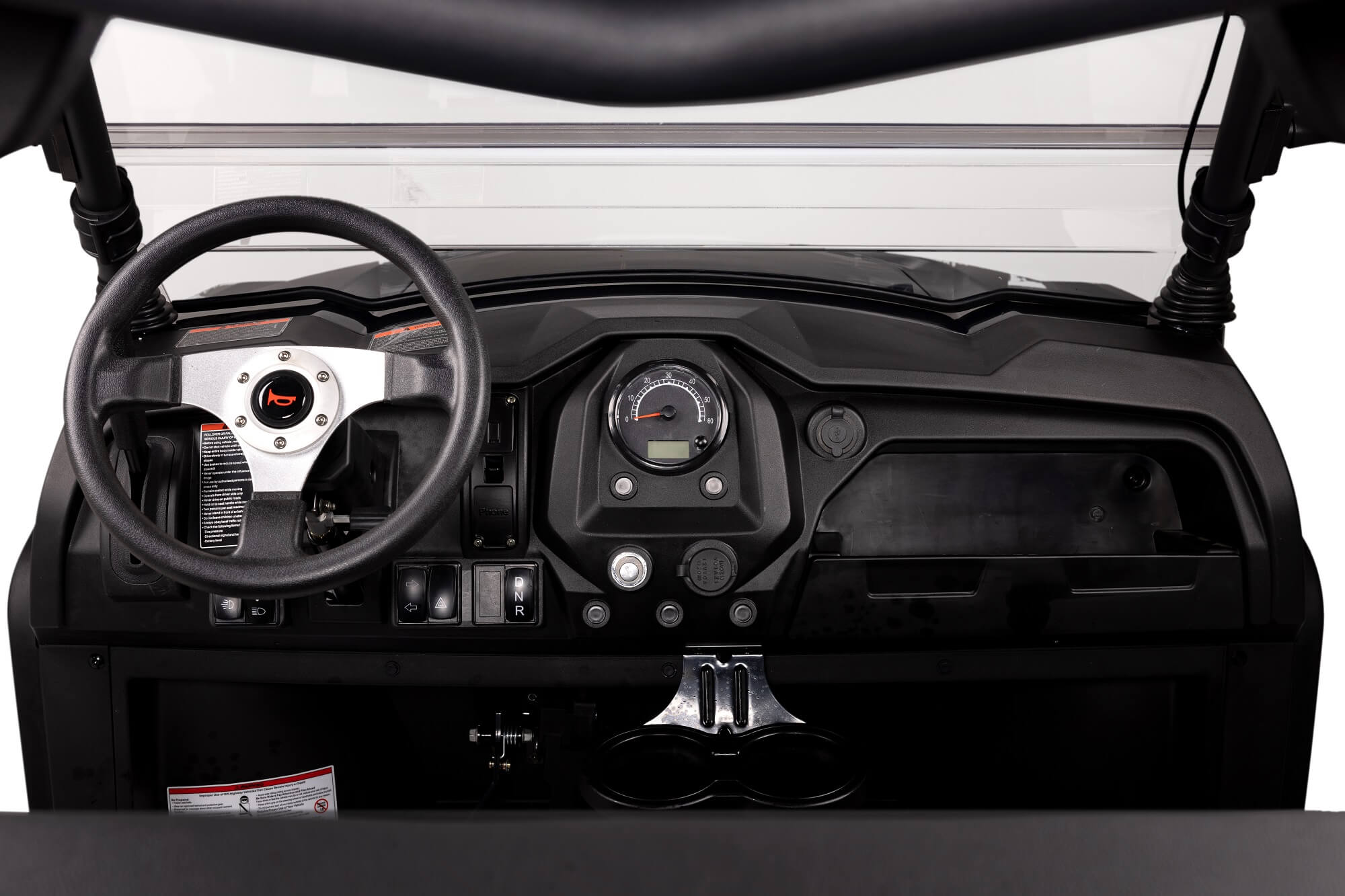

ADJUSTABLE STEERING WHEEL & ARMREST

Adjustable steering wheel and armrest for a safer and more convenient driving experience.
Steering wheel up and down, Seat front and rear and side-armrest adjustments, these all features ensure comfortable driving experience.

INDEPENDENT SUSPENSION

Independent front suspension both front and rear for a more comfortable driving experience.
Good responsiveness and controllability, simple structure, small space occupation, and light weight.Bring you comfortable driving experience

UL CERTIFIED LEAD-ACID/LITHIUM GEL BATTERY

UL certified lead-acid gel/iron lithium batteries are optional.
High quality and long life; Safe, reliable and environmentally-friendly ; High efficiency, performance well; save your maintenance time
